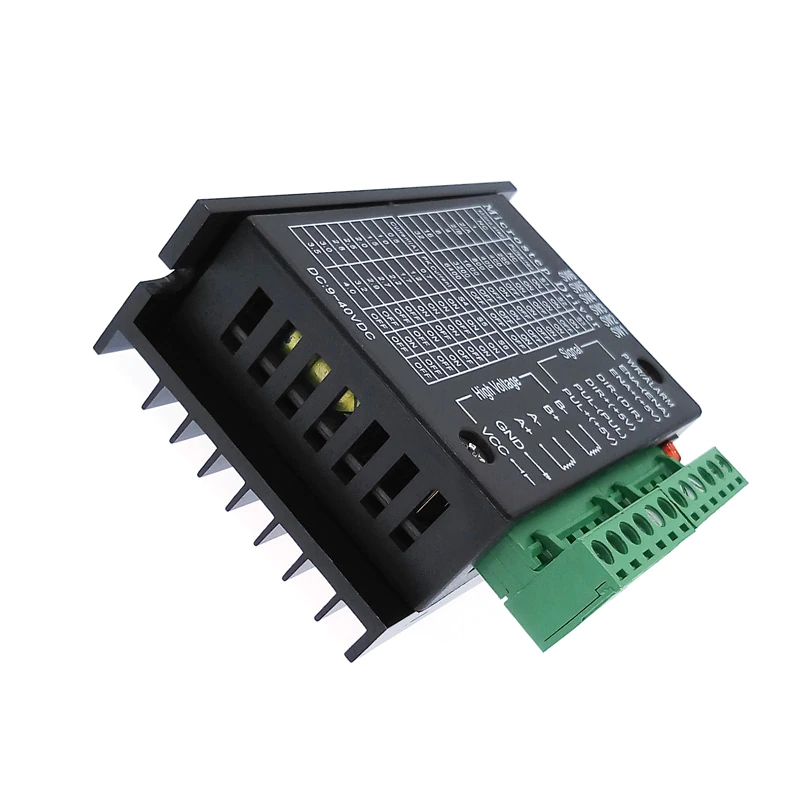

TB6600 stepper driver upgraded 4.0A 42VDC

Availability : Out of Stock
.

Unfortunatily this product is not available at the moment but you can pre-order it , and once it's available , you will receive a notification !

400.00 EGP

Specifications

This drive is an upgraded version of the TB6600, the breakdown of heightening to 32 segments,

for high segmentation purposes. Applicable stepper motor: 42,57,86 type of 2-phase 4-phase (4-wire 6 wire line 8),

The upgraded version of TB6600 is a driver suitable for 57/42 type two-phase hybrid stepping motor with phase current below 4.0A.

Set 6 kinds of subdivisions (1/2A/2B/4/8/16/32) through 6-bit DIP switch)

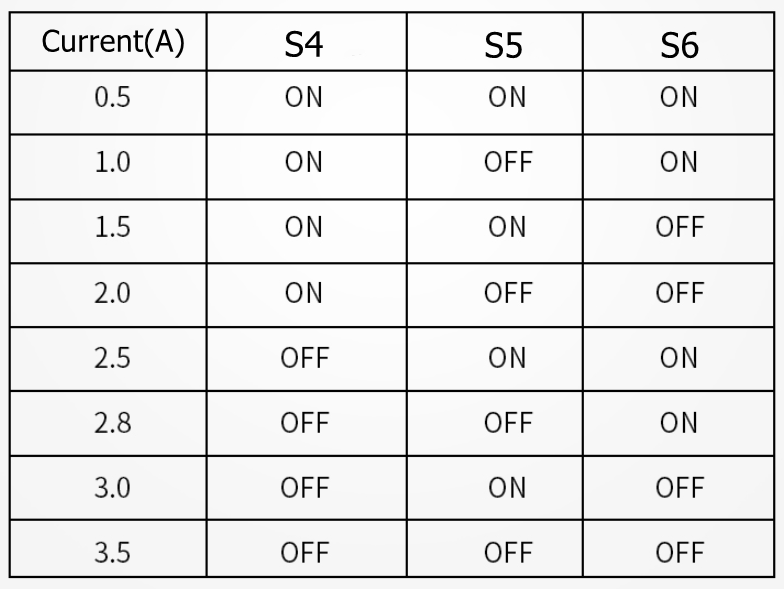

And 8 gear output current (0.5A/1.0A/1.5A/2.0A/2.5A/2.8A/3.0A/3.5A)

Widely used in various small and medium-sized automation equipment and hardware,

Such as: engraving machine, marking machine, cutting machine, laser phototypesetting, plotter, CNC machine tool, crystal grinding machine, automatic assembly equipment, etc.

The best application object is 57 stepper motors and 42 stepper motors with a torque of 1.8N.m and below.


Features

1. DC 9V-42V power supply, recommend 12V-24V power supply

2. The input voltage of control signal is 3.3-24V universal (no string resistance required)

3. Microstep is 1-32

4. Output peak current 4.0A

5. H-bridge bipolar constant current drive

6. Input signal high-speed optocoupler isolation

7. Built-in temperature protection and overcurrent protection

8. Automatic half flow to reduce heat generation

9. Motor noise optimization function
