500W Spindle Air Cooled Motor 48V With Holder and ER11 Chuck

Availability : Out of Stock
.

Unfortunatily this product is not available at the moment but you can pre-order it , and once it's available , you will receive a notification !

2700.00 EGP
Product parameters
Spindle motor: Electrophoresis black DC brush motor
Working voltage: 48V
Power: 500W
Starting current: 10A
Locked rotor current: 35A
Speed: 3000-12000r / min (12v-3000rpm, 24v-6000rpm, 36v-9000rpm, 48v-12000rpm)
Torque: 550MN. M
Insulation resistance: > 2 megohm
Dielectric strength of insulation: 400V

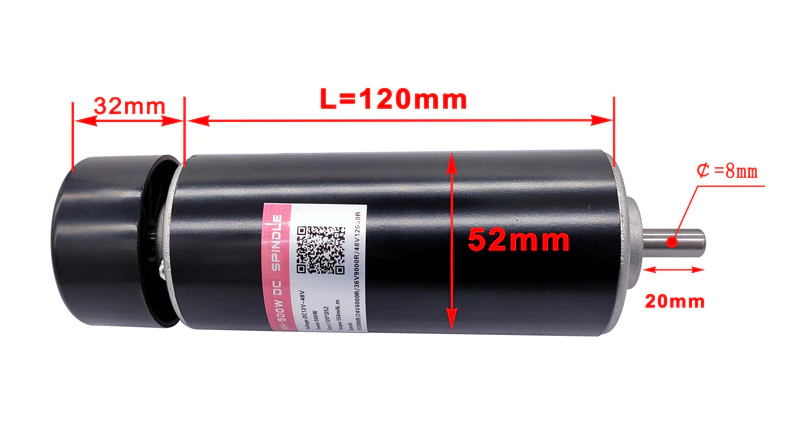

Diameter: 52mm
Motor body length: 120mm

Package Include: 1x Spindle 500w
                             1x Spindle Mount 52mm
                             1x ER11 Chuck 8mm
