800W air cool spindle kit dc 110V 20000rpm
Availability :
Out of Stock
.
Unfortunatily this product is not available at the moment but you can pre-order it , and once it's available , you will receive a notification !
4200.00 EGP
Category :
CNC Accessories

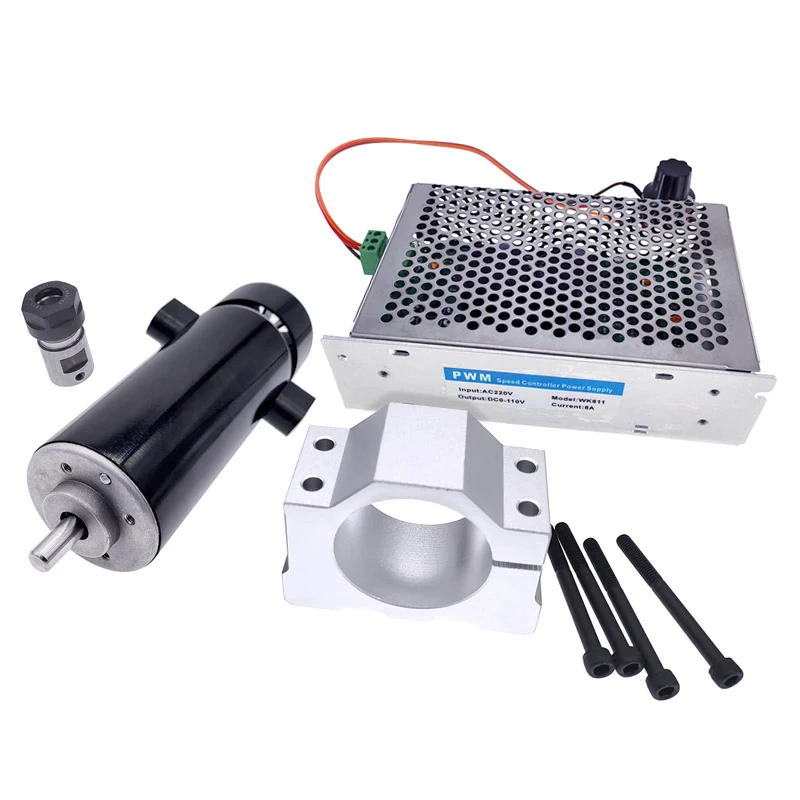

Kit include:
1*Spindle 800W 110V

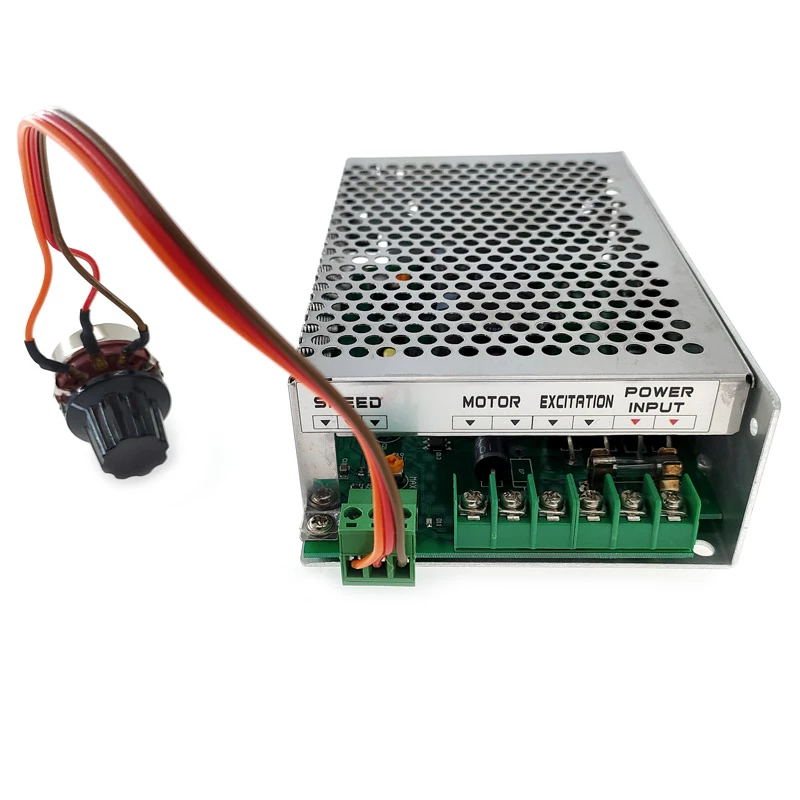

1*110v speed regulator
1*Spindle mount
1* ER11 Chuck
Product parameters

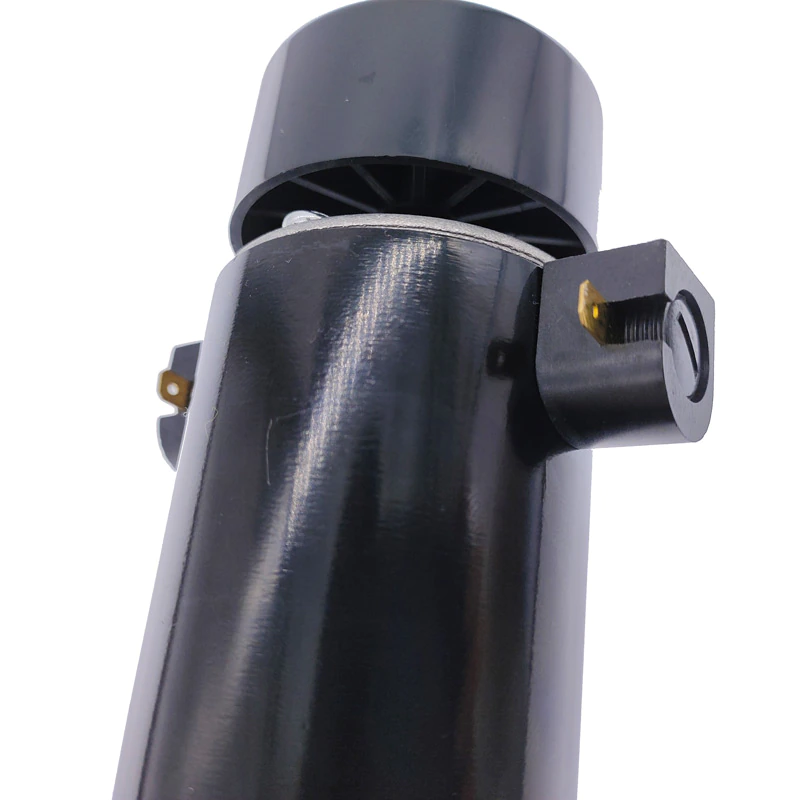

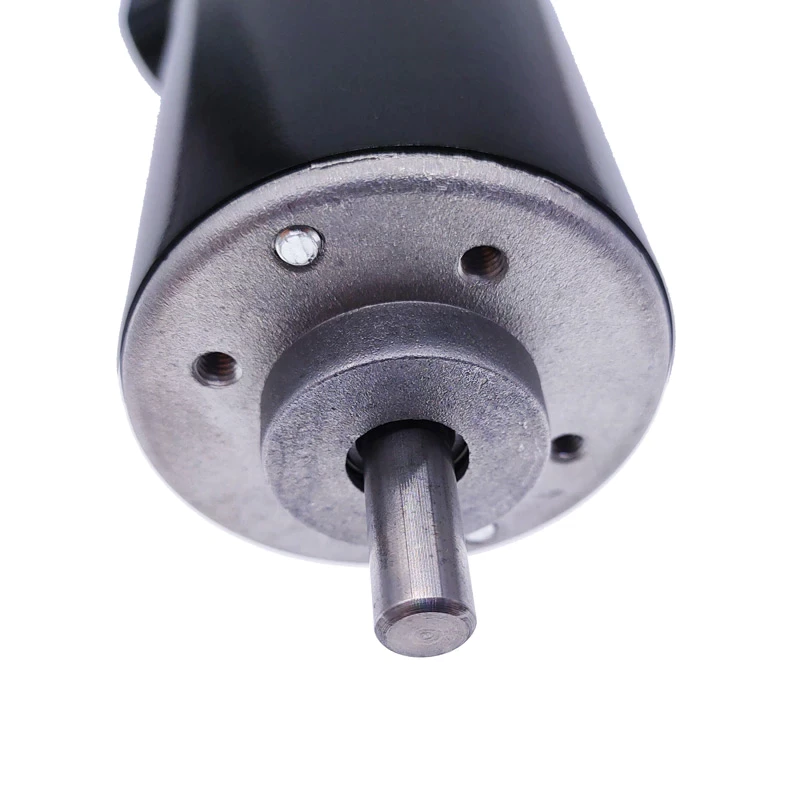

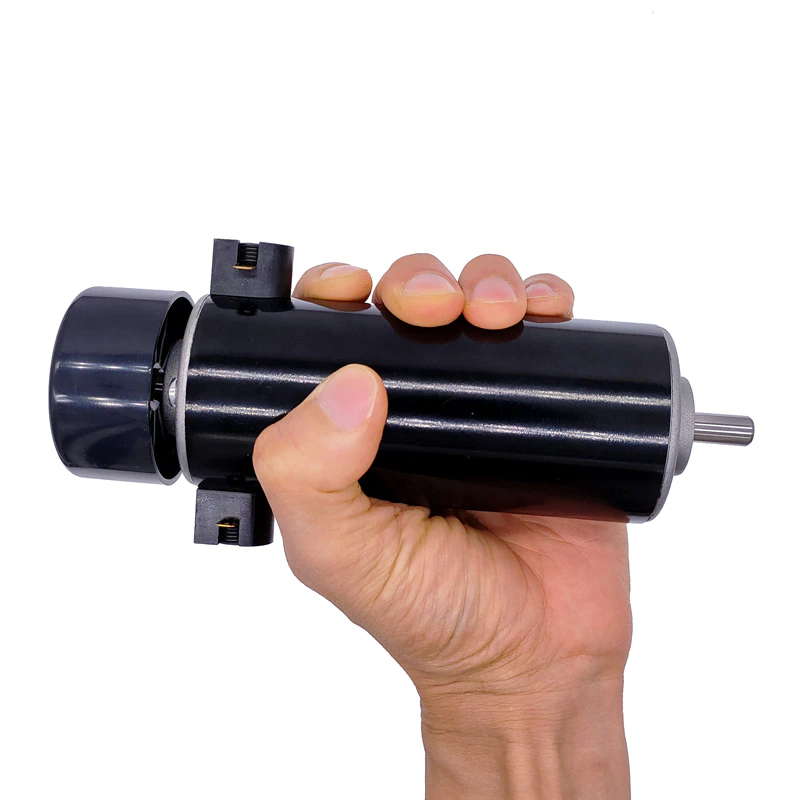

Spindle motor: Electrophoresis black DC brush motor
Working voltage: 0-110 Vdc
Power: 800W
Starting current: 12A
Locked rotor current: 40A
Speed: 8000-20000r / min (48v-8000rpm, 60v-10000rpm, 72v-12000rpm, 110v-20,000rpm)
Torque: 800MN. M
Insulation resistance: > 2 megohm
Dielectric strength of insulation: 400V

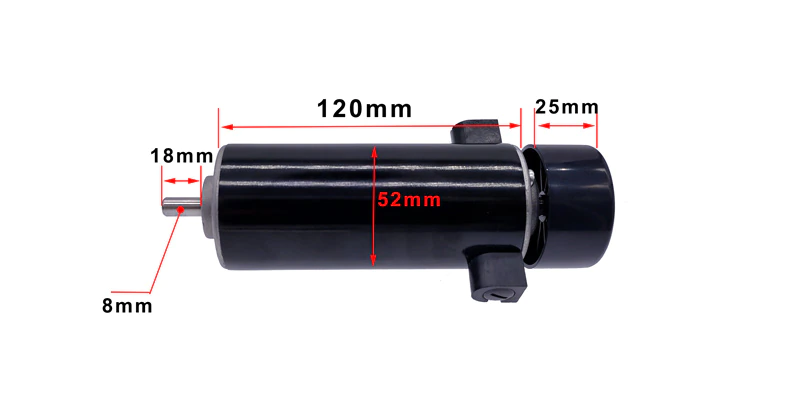

Diameter: 52mm
Motor body length: 120mm
